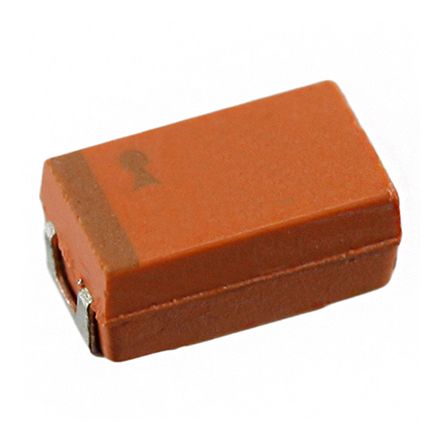

EPCOS 47μF Niobium Capacitor 6.3V dc ±20% Surface Mount 6mm NOJ Series [NOJC476M006RWJ]; 887-6007
by AVX
0₫
Mã kho: 8876007
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | NOJ |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage | 6.3 V dc |
| Package/Case | 6032-28 |
| Mounting Type | Surface Mount |
| Equivalent Series Resistance | 0.5Ω |
| Dissipation Factor | 0.06 |
| Leakage Current | 5.7 μA |
| Dimensions | 6 x 3.2 x 2.6mm |
| Lead Pitch | 2.9 (Min)mm |
| Height | 2.6mm |
| Terminal Type | Surface Mount |
| Tolerance Plus | 0.2 |
| Dielectric Material Family | Niobium |
| Minimum Operating Temperature | -55°C |
| Width | 3.2mm |
| Tolerance Minus | -0.2 |
| Surge Voltage | 5 ≤+105°C V, 8 V @ ≤+85°C |
| Length | 6mm |
| Maximum Operating Temperature | +105°C |
