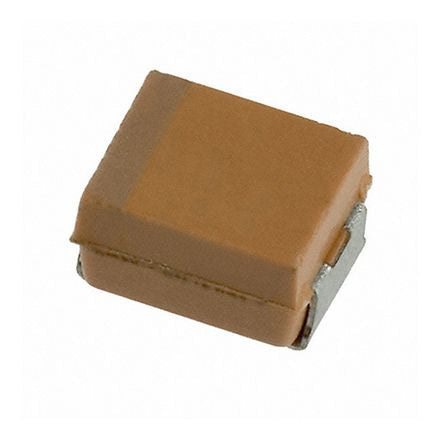

EPCOS 22μF Niobium Capacitor 10V dc ±20% Surface Mount 2.8mm NOJ Series [NOJB226M010RWJ]; 887-5997
by AVX
0₫
Mã kho: 8875997
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | NOJ |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage | 10 V dc |
| Package/Case | 3528-21 |
| Mounting Type | Surface Mount |
| Equivalent Series Resistance | 1.8Ω |
| Dissipation Factor | 0.06 |
| Leakage Current | 4.4 μA |
| Dimensions | 2.8 x 1.9 x 2.2mm |
| Lead Pitch | 1.4 (Min)mm |
| Height | 2.2mm |
| Terminal Type | Surface Mount |
| Maximum Operating Temperature | +105°C |
| Tolerance Plus | 0.2 |
| Dielectric Material Family | Niobium |
| Minimum Operating Temperature | -55°C |
| Width | 1.9mm |
| Tolerance Minus | -0.2 |
| Length | 2.8mm |
| Surge Voltage | 8 ≤+105°C V, 13 V @ ≤+85°C |
