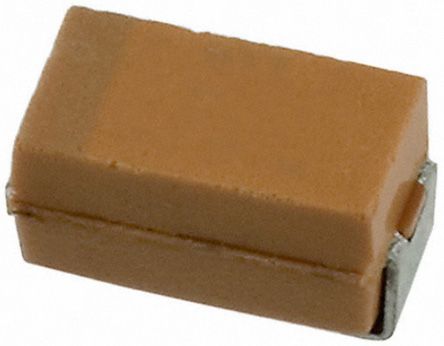

AVX 10μF Niobium Capacitor 10V dc ±20% Surface Mount 3.2mm NOJ Series [NOJA106M010RWJ]; 144-1850
by AVX
0₫
Mã kho: 1441850
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | NOJ |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage | 10 V dc |
| Package/Case | 3216-18 |
| Mounting Type | Surface Mount |
| Equivalent Series Resistance | 2.2Ω |
| Dissipation Factor | 0.06 |
| Leakage Current | 2 μA |
| Dimensions | 3.2 x 1.6 x 1.6mm |
| Lead Pitch | 1.1mm |
| Depth | 1.6mm |
| Height | 1.6mm |
| Polarised | Polar |
| Tolerance Minus | -0.2 |
| Maximum Operating Temperature | +105°C |
| Surge Voltage | 13V |
| Minimum Operating Temperature | -55°C |
| Length | 3.2mm |
| Dielectric Material Family | Niobium |
| Tolerance Plus | 0.2 |
