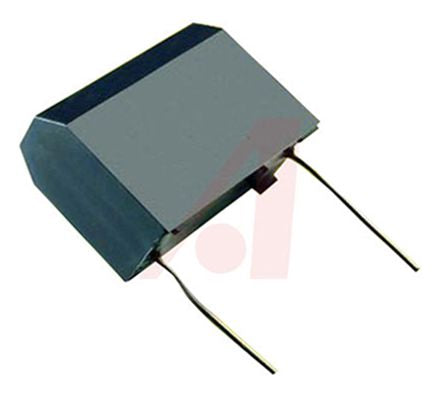

EPCOS 5.1μF Polypropylene Capacitor PP 900V dc ±10% Tolerance FFB Series [FFB46C0515K--]; 888-0920
by AVX
0₫
Mã kho: 8880920
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 5.1 µF |
| Voltage | 900 V dc |
| Tolerance | ±10% |
| Series | FFB |
| Lead Pitch | 27.5mm |
| Length | 31.1mm |
| Depth | 20.8mm |
| Height | 31.3mm |
| Dimensions | 31.1 x 20.8 x 31.3mm |
| Dielectric | PP |
| Maximum Operating Temperature | +105°C |
| Lead Length | 5.5mm |
| Dielectric Material Family | Polypropylene (PP) |
| Package/Case | 4 |
| Equivalent Series Resistance | 16mΩ |
| Terminal Type | Radial |
| Minimum Operating Temperature | -55°C |
| Lead Diameter | 1mm |
