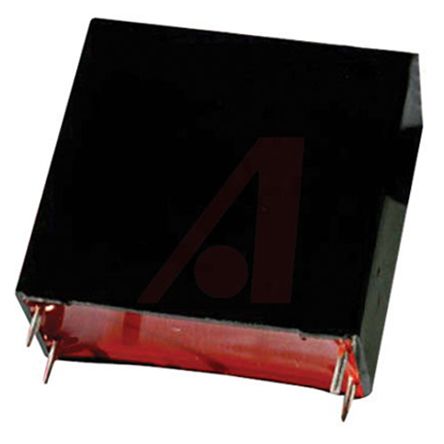

EPCOS 22μF Polypropylene Capacitor PP 700V dc ±10% Tolerance FE Series [FE37L6A0226KA]; 888-0823
by AVX
0₫
Mã kho: 8880823
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 22 µF |
| Voltage | 700 V dc |
| Tolerance | ±10% |
| Series | FE |
| Lead Pitch | 10.2 mm, 37.5 mm |
| Length | 42.5mm |
| Depth | 44mm |
| Height | 24mm |
| Dimensions | 42.5 x 44 x 24mm |
| Dielectric | PP |
| Terminal Type | Radial |
| Maximum Operating Temperature | +100°C |
| Lead Diameter | 1.2mm |
| Lead Length | 5mm |
| Dielectric Material Family | Polypropylene (PP) |
| Package/Case | L |
| Equivalent Series Resistance | 5.5mΩ |
| Minimum Operating Temperature | -40°C |
