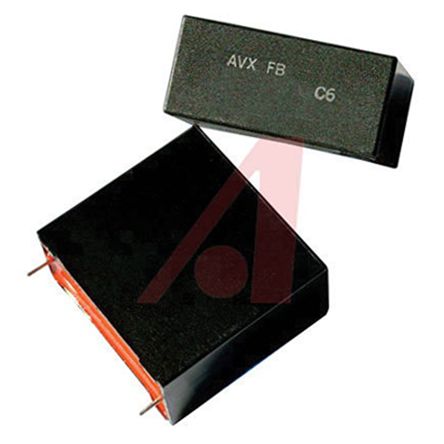

EPCOS 10μF Polypropylene Capacitor PP 1.2kV dc ±10% Tolerance FB Series [FB37M6P0106KC]; 888-0829
by AVX
0₫
Mã kho: 8880829
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 1.2 kV dc |
| Tolerance | ±10% |
| Series | FB |
| Lead Pitch | 37.5mm |
| Length | 42.5mm |
| Depth | 45mm |
| Height | 30mm |
| Dimensions | 42.5 x 45 x 30mm |
| Dielectric | PP |
| Lead Diameter | 1.2mm |
| Equivalent Series Resistance | 8.5mΩ |
| Dielectric Material Family | Polypropylene (PP) |
| Minimum Operating Temperature | -40°C |
| Terminal Type | Radial |
| Package/Case | M |
| Lead Length | 15mm |
| Maximum Operating Temperature | +100°C |
