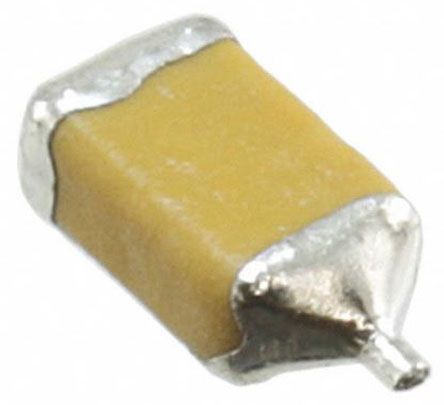

AVX Tantalum Capacitor 100μF 6.3V dc Electrolytic Solid F95 Series [F950J107MPAAQ2]; 136-2556
by AVX
0₫
Mã kho: 1362556
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 100 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 905 |
| Equivalent Series Resistance | 1.2Ω |
| Length | 2.2mm |
| Height | 1mm |
| Dimensions | 2.2 x 1.25 x 1mm |
| Series | F95 |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125°C |
| Dielectric Material Family | Tantalum |
| Minimum Operating Temperature | -55°C |
| Dissipation Factor | 0.35 |
| Polarised | Polar |
| Terminal Type | SMD |
| Leakage Current | 12.6 μA |
