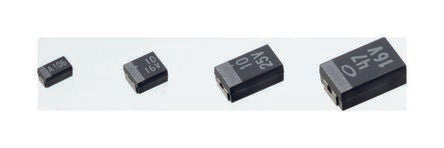

AVX Tantalum Electrolytic Capacitor 22μF 16V dc MnO2 Solid ±20% Tolerance F93 Series [F931C226MB]; 501-9532
by AVX
0₫
Mã kho: 5019532
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | MnO2 |
| Capacitance | 22 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 3528-21 |
| Equivalent Series Resistance | 1.9Ω |
| Tolerance | ±20% |
| Length | 3.5mm |
| Depth | 2.8mm |
| Height | 1.9mm |
| Dimensions | 3.5 x 2.8 x 1.9mm |
| Series | F93 |
| Electrolyte Type | Solid |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Leakage Current | 3.5 μA |
| Dissipation Factor | 0.08 |
| Tolerance Minus | -0.2 |
| Tolerance Plus | 0.2 |
| Terminal Type | Surface Mount |
