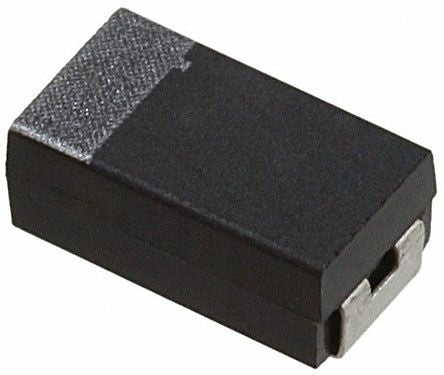

AVX Tantalum Capacitor 47μF 10V dc Electrolytic Solid F93 Series [F931A476KA]; 136-2657
by AVX
0₫
Mã kho: 1362657
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Technology | Electrolytic |
Capacitance | 47 µF |
Voltage | 10 V dc |
Mounting Type | Surface Mount |
Package/Case | 1206 (3216M) |
Equivalent Series Resistance | 2Ω |
Length | 3.2mm |
Height | 1.6mm |
Dimensions | 3.2 x 1.6 x 1.6mm |
Series | F93 |
Electrolyte Type | Solid |
Dielectric Material Family | Tantalum |
Maximum Operating Temperature | +125°C |
Dissipation Factor | 0.4 |
Minimum Operating Temperature | -55°C |
Polarised | Polar |
Leakage Current | 4.7 μA |
Terminal Type | SMD |
