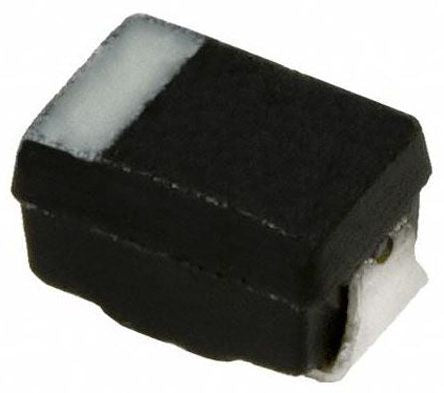

AVX Tantalum Capacitor 4.7μF 6.3V dc Electrolytic Solid F92 Series [F920J475MPA]; 136-1190
by AVX
0₫
Mã kho: 1361190
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 4.7 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 0805 (2012M) |
| Equivalent Series Resistance | 6Ω |
| Length | 2mm |
| Height | 1.1mm |
| Dimensions | 2 x 1.25 x 1.1mm |
| Series | F92 |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125°C |
| Polarised | Polar |
| Leakage Current | 0.5 μA |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Tantalum |
| Dissipation Factor | 0.08 |
| Terminal Type | SMD |
