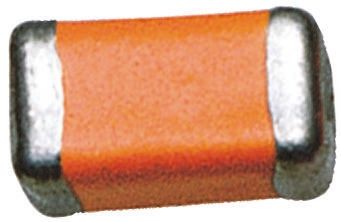

AVX 0402 (1005M) 0.4pF MLCC 25V dc ±0.05pF SMD 04023J0R4ABSTR [04023J0R4ABSTR]; 170-4667
by AVX
0₫
Mã kho: 1704667
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 0.4 pF |
| Voltage | 25 V dc |
| Package/Case | 0402 (1005M) |
| Mounting Type | Surface Mount |
| Dielectric | C0G |
| Tolerance | ±0.05pF |
| Dimensions | 1 x 0.55 x 0.4mm |
| Length | 1mm |
| Depth | 0.55mm |
| Height | 0.4mm |
| Series | Accu-P |
| Terminal Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
