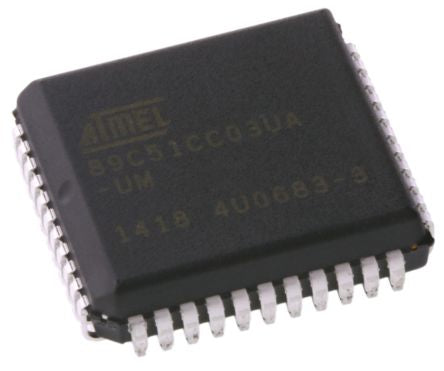

Atmel AT89C51CC03UA-SLSUM, 8bit 8051 Microcontroller, 60MHz, 64 kB Flash, 44-Pin PLCC [AT89C51CC03UA-SLSUM]; 738-0182
by Atmel
0₫
Mã kho: 7380182
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | AT89C |
Package Type | PLCC |
Mounting Type | Surface Mount |
Pin Count | 44 |
Device Core | 8051 |
Data Bus Width | 8bit |
Program Memory Size | 64 kB |
Maximum Frequency | 60MHz |
RAM Size | 2 kB, 2.048 kB, 256 B |
Number of PWM Units | 1 |
ADC Channels | 8 |
Typical Operating Supply Voltage | 3 → 5.5 V |
Instruction Set Architecture | RISC |
Number of CAN Channels | 1 |
Number of ADC Units | 1 |
Maximum Operating Temperature | +85 °C |
PWM Resolution | 8bit |
Timer Resolution | 16bit |
Height | 4.57mm |
ADC Resolution | 10bit |
Number of Timers | 3 |
Number of UART Channels | 1 |
Program Memory Type | Flash |
Timers | 3 x 16 bit |
Dimensions | 16.66 x 16.66 x 4.57mm |
Length | 16.66mm |
Pulse Width Modulation | 5 x 8 bit |
PWM Channels | 5 |
Width | 16.66mm |
ADCs | 8 x 10 bit |
Minimum Operating Temperature | -40 °C |
