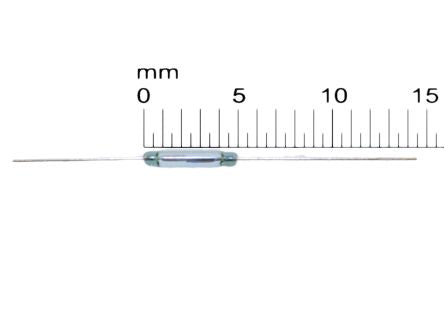

![Assemtech RI-80B 9092682](http://nguyenxuong.com/cdn/shop/products/R9092682-01_444x333.jpg?v=1594033459)
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | SPST-NO |
Maximum Switching Current | 350mA |
Maximum Switching Power | 5W |
Contact Resistance | 2 (Loaded)Ω |
Contact Material | Ruthenium on Gold |
Maximum Release Time | 20µs |
Operating Time Including Bounce | 0.35ms |
AT Value Range | 10-15AT |
Width | 1.8 (Dia.)mm |
Length | 5mm |
Dimensions | 1.8 (Dia.) x 5mm |
