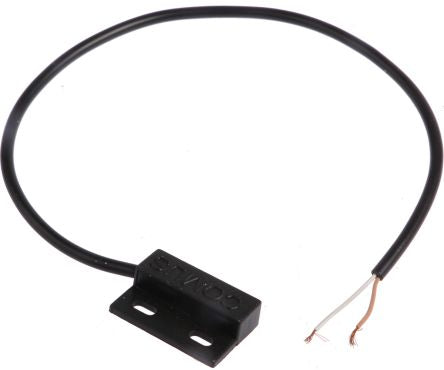

Assemtech Reed Switch Rectangular 100V, NC, 500 mA [PSB130/30]; 361-4961
by Assemtech
0₫
Mã kho: 3614961
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Shape | Rectangular |
| Switch Type | Magnetic Proximity |
| Normal State Configuration | NC |
| Terminal Type | Wire Lead |
| Maximum Current | 500 mA |
| Maximum AC Voltage | 100V |
| Contact Resistance | 150mΩ |
| Total Length | 330mm |
| Length | 30mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Width | 20mm |
| Depth | 7mm |
| Dimensions | 30 x 20 x 7 mm |
