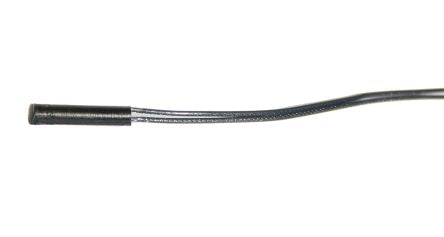

Assemtech Reed Switch Cylindrical 30V, NO, 10 mA [PRA 30/10]; 866-2580
by Assemtech
0₫
Mã kho: 8662580
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Shape | Cylindrical |
| Switch Type | Magnetic Proximity |
| Pole and Throw Configuration | SPST |
| Normal State Configuration | NO |
| Terminal Type | Wire Lead |
| Maximum Current | 10 mA |
| Maximum AC Voltage | 30V |
| Contact Resistance | 500mΩ |
| Total Length | 102mm |
| Length | 12mm |
| Minimum Operating Temperature | -20°C |
| Dimensions | 2.5 (Dia.) x 12 mm |
| Maximum Operating Temperature | +70°C |
