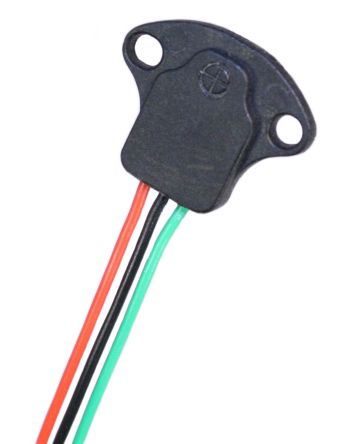

Assemtech 3-Wire Open Collector Hall Effect Sensor switching current 5.2 mA supply voltage 4.5 → 24 V dc [PGN-SP-001]; 866-2619
by Assemtech
0₫
Mã kho: 8662619
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | 3-Wire Open Collector |
| Body Style | Block |
| Supply Voltage | 4.5 → 24 V dc |
| Terminal Type | Wire Lead |
| Maximum DC Voltage | 24V |
| Switching Current | 5.2 mA |
| Length | 17.27mm |
| Width | 21.72mm |
| Depth | 3.3mm |
| Dimensions | 17.27 x 21.72 x 3.3 mm |
| Minimum Operating Temperature | -40°C |
| IP Rating | IPX5 |
| Standards Met | IEC 529 |
| Maximum Operating Temperature | +85°C |
