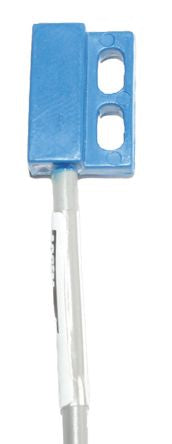

![Assemtech MMPSB 130/30 LH BLUE 8662612](http://nguyenxuong.com/cdn/shop/products/R8662609-01_172x444.jpg?v=1594017785)
Assemtech Reed Switch Rectangular 100V, NC, 500 mA [MMPSB 130/30 LH BLUE]; 866-2612
by Assemtech
0₫
Mã kho: 8662612
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Switch Shape | Rectangular |
Switch Type | Magnetic Proximity |
Pole and Throw Configuration | SPST |
Normal State Configuration | NC |
Terminal Type | Wire Lead |
Maximum Current | 500 mA |
Maximum AC Voltage | 100V |
Contact Resistance | 150mΩ |
Total Length | 320mm |
Length | 14mm |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -20°C |
Depth | 6mm |
Dimensions | 14 x 20 x 6 mm |
Width | 20mm |
