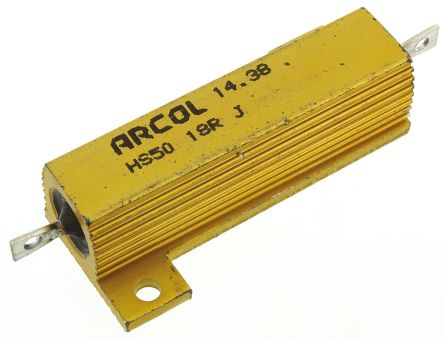

Arcol HS50 Series Aluminium Housed Axial Wire Wound Panel Mount Resistor, 18Ω ±5% 50W [HS50 18R J]; 166-4199
by Arcol
0₫
Mã kho: 1664199
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resistance | 18 Ω |
| Power Rating | 50W |
| Series | HS50 |
| Package/Case | Aluminium Housed |
| Tolerance | ±5% |
| Technology | Wire Wound |
| Termination Style | Axial |
| Minimum Temperature Coefficient | -100ppm/°C |
| Maximum Temperature Coefficient | +100ppm/°C |
| Overall Height | 14.8mm |
| Dimensions | 14.8 x 72.5 x 29.7mm |
| Overall Length | 72.5mm |
| Overall Width | 29.7mm |
