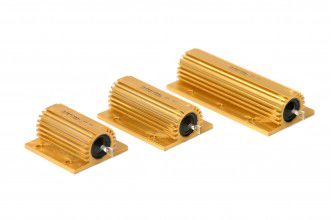

Arcol HS100 Series Axial Aluminium High Power Resistor, 9.1Ω ±1% 100W [HS100 9R1 F]; 162-3491
by Arcol
0₫
Mã kho: 1623491
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resistance | 9.1 Ω |
| Power Rating | 100W |
| Series | HS100 |
| Package/Case | Aluminium Housed |
| Tolerance | ±1% |
| Technology | Aluminium |
| Termination Style | Axial |
| Minimum Temperature Coefficient | -100ppm/°C |
| Maximum Temperature Coefficient | +100ppm/°C |
| Dimensions | 65.2 x 47.5 x 24.1mm |
| Overall Length | 65.2mm |
| Overall Height | 24.1mm |
| Overall Width | 47.5mm |
