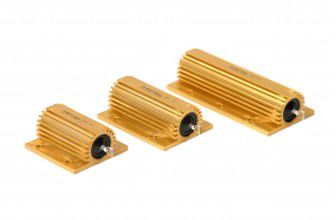

Arcol HS100 Series Axial Aluminium High Power Resistor, 100Ω ±1% 100W [HS100 100R F]; 162-3537
by Arcol
0₫
Mã kho: 1623537
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resistance | 100 Ω |
Power Rating | 100W |
Series | HS100 |
Package/Case | Aluminium Housed |
Tolerance | ±1% |
Technology | Aluminium |
Termination Style | Axial |
Minimum Temperature Coefficient | -100ppm/°C |
Maximum Temperature Coefficient | +100ppm/°C |
Overall Length | 65.2mm |
Overall Height | 24.1mm |
Overall Width | 47.5mm |
Dimensions | 65.2 x 47.5 x 24.1mm |
