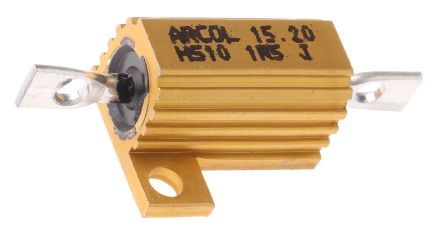

Arcol HS10 Series Aluminium Housed Axial Wire Wound Panel Mount Resistor, 1.5Ω ±5% 10W [HS10 1R5 J]; 615-0274
by Arcol
0₫
Mã kho: 6150274
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resistance | 1.5 Ω |
| Power Rating | 10W |
| Series | HS10 |
| Package/Case | Aluminium Housed |
| Tolerance | ±5% |
| Technology | Wire Wound |
| Termination Style | Axial |
| Minimum Temperature Coefficient | -100ppm/°C |
| Maximum Temperature Coefficient | +100ppm/°C |
| Dimensions | 8.8 x 30 x 16.5mm |
| Overall Length | 30mm |
| Overall Height | 8.8mm |
| Overall Width | 16.5mm |
