![APEM Y12CP 5185314](http://nguyenxuong.com/cdn/shop/products/F5185314-01_256x444.jpg?v=1593760515)

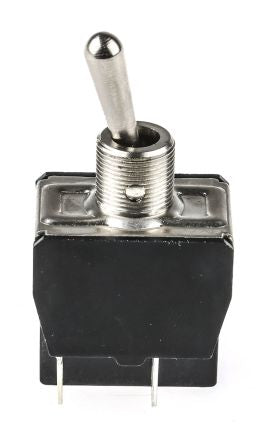

APEM Double Pole Single Throw (DPST) Toggle Switch, Latching, Panel Mount [Y12CP]; 518-5314
by APEM
0₫
Mã kho: 5185314
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Double Pole Single Throw (DPST) |
Switch Operation | On-Off-On |
Contact Current Rating | 15 A @ 250 V ac |
Mounting Type | Panel Mount |
Terminal Type | Tab |
Actuator Length | 17.5mm |
Contact Resistance | 10mΩ |
Contact Material | Silver |
Maximum Operating Temperature | +55°C |
Operating Temperature Range | -20 → +55°C |
Minimum Operating Temperature | -20°C |
