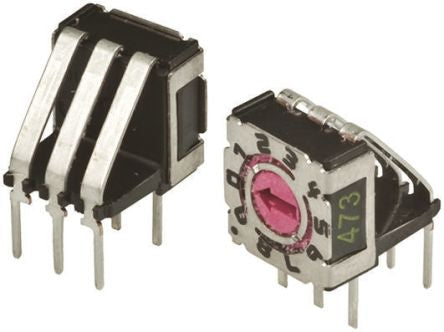

10 Way Through Hole DIP Switch, Rotary Flush Actuator [P36THR101L508]; 693-1203
by Apem
0₫
Mã kho: 6931203
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Current Rating | 100 mA@ 24 V dc |
| Contact Material | Gold over Nickel Plated Phosphor Bronze |
| Number of Positions | 10 |
| Mounting Type | Through Hole |
| Actuator Type | Rotary Flush |
| Package Style | DIP |
| Mechanical Life | 10000Operations |
| Maximum Operating Temperature | +90°C |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +90°C |
| Voltage Rating | 24V dc |
