![APEM KR45CAKJJG 507425](http://nguyenxuong.com/cdn/shop/products/R0507429-01_31206674-4b4a-4b09-a576-f9263522ea71_293x444.jpg?v=1594421632)

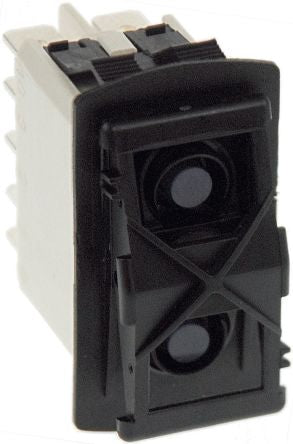

APEM Illuminated Double Pole Single Throw (DPST), Momentary Rocker Switch Panel Mount [KR45CAKJJG]; 507-425
by APEM
0₫
Mã kho: 507425
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Double Pole Single Throw (DPST) |
Switch Operation | (On)-On |
Panel Cut Out Width | 21.08mm |
Panel Cut Out Height | 36.8mm |
Contact Current Rating | 5 A @ 24 V dc |
Illuminated | Yes |
Mounting Type | Panel Mount |
IP Rating | IP68 |
Terminal Type | Quick Connect, Solder |
Actuator Shape | Rectangular |
Panel Cut Out Size | 36.8 x 21.08mm |
Contact Resistance | 10mΩ |
Minimum Operating Temperature | -40°C |
DC Voltage Rating | 24V |
Contact Material | Silver |
Mechanical Life | 150000Operations |
Operating Temperature Range | -40 → +85°C |
Case Material | Nylon 66 |
Maximum Operating Temperature | +85°C |
