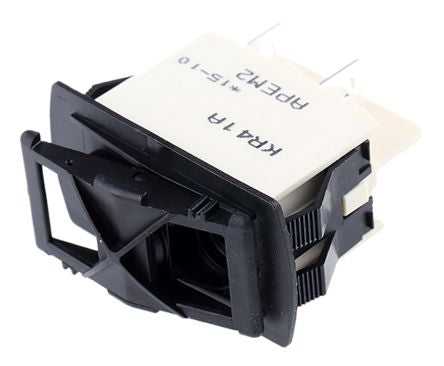

APEM Double Pole Single Throw (DPST), Latching Rocker Switch Panel Mount [KR412AXXXA]; 507-431
by APEM
0₫
Mã kho: 507431
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Single Throw (DPST) |
| Switch Operation | On-Off |
| Panel Cut Out Width | 21.08mm |
| Panel Cut Out Height | 36.8mm |
| Contact Current Rating | 5 A @ 24 V dc |
| Illuminated | No |
| Mounting Type | Panel Mount |
| IP Rating | IP68 |
| Terminal Type | Quick Connect, Solder |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 36.8 x 21.08mm |
| Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver |
| Case Material | Nylon 66 |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 150000Operations |
| DC Voltage Rating | 24V |
| Operating Temperature Range | -40 → +85°C |
