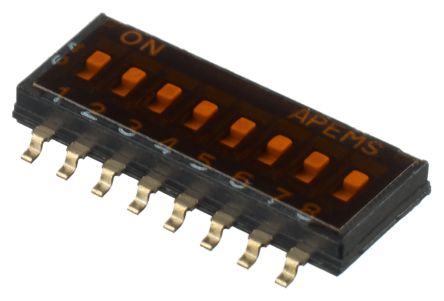

8 Way Surface Mount DIP Switch SPST, Recessed Actuator Slide Actuator [IKH0803000]; 877-2223
by APEM
0₫
Mã kho: 8772223
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPST |
| Contact Current Rating | 25 (Switching) mA @ 24 V dc, 100 (Non-Switching) mA @ 50 Vdc |
| Contact Material | Phosphor Bronze |
| Number of Positions | 8 |
| Mounting Type | Surface Mount |
| Actuator Type | Recessed Actuator Slide |
| Package Style | DIP |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +70°C |
| Dielectric Strength | 300V ac |
| Voltage Rating | 24 V dc, 50 V dc |
