![APEM IKD0600101 8772191](http://nguyenxuong.com/cdn/shop/products/R8772191-01_444x367.jpg?v=1594259155)

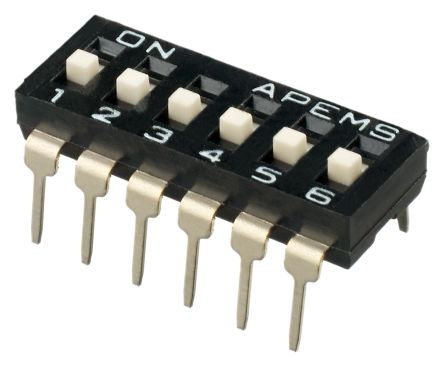

6 Way Through Hole DIP Switch SPST, Raised Actuator Slide Actuator [IKD0600101]; 877-2191
by APEM
0₫
Mã kho: 8772191
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | SPST |
Contact Current Rating | 25 (Switching) mA @ 24 V dc, 100 (Non-Switching) mA @ 50 Vdc |
Contact Material | Phosphor Bronze (Moving Contact) |
Number of Positions | 6 |
Mounting Type | Through Hole |
Actuator Type | Raised Actuator Slide |
Package Style | DIP |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -20°C |
Operating Temperature Range | -20 → +85°C |
Dielectric Strength | 500V ac |
Voltage Rating | 24 V dc, 50 V dc |
