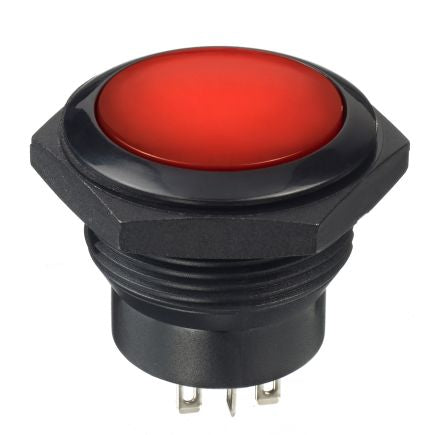

2-pole on-off switch Push Button Switch, Panel Mount, 12V dc [FPDR3D1462C1XXX]; 174-9005
by APEM
0₫
Mã kho: 1749005
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Operation | Latching, Momentary |
| Mounting Type | Panel Mount |
| Illuminated | Yes |
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Panel Cut Out Diameter | 30mm |
| LED Colour | Red |
| Actuator Colour | Red |
| Voltage Rating | 12V dc |
| Contact Current Rating | 200 mA @ 12 V dc |
| Actuator Shape | Round |
| Terminal Type | Solder Lug |
| Case Colour | Black |
| Contact DC Voltage Rating | 12V |
