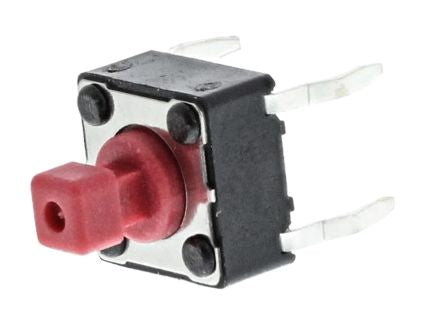

Red Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 3.8mm [DTS644RV]; 378-6511
by APEM
0₫
Mã kho: 3786511
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Through Hole |
| Switch Operation | Momentary |
| Actuator Length | 3.8mm |
| Actuator Colour | Red |
| Actuator Type | Button |
| Dimensions | 6 x 6 x 7.3mm |
| Contact Current Rating | 50 mA @ 12 V dc |
| Operating Force | 2.55 N |
| Contact Material | Silver Plated Phosphor Bronze |
| Height | 7.3mm |
