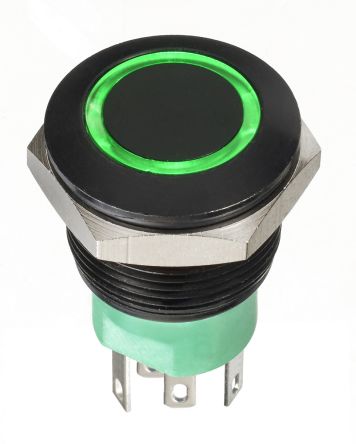

2-pole on-off switch Momentary Push Button Switch, IP67, 19.2 (Dia.)mm, Panel Mount, 30V dc [AV9V0220000870K]; 136-1307
by APEM
0₫
Mã kho: 1361307
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Operation | Momentary |
| Mounting Type | Panel Mount |
| Illuminated | Yes |
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Panel Cut Out Size | 19.2 (Dia.)mm |
| Panel Cut Out Diameter | 19.2mm |
| LED Colour | Green |
| IP Rating | IP67 |
| Actuator Colour | Silver |
| Voltage Rating | 30V dc |
| Contact Current Rating | 0.0416666666666667 |
| Actuator Shape | Round |
| Terminal Type | Quick Connect, Solder |
| Contact DC Voltage Rating | 30V |
| Actuator Type | Flat |
