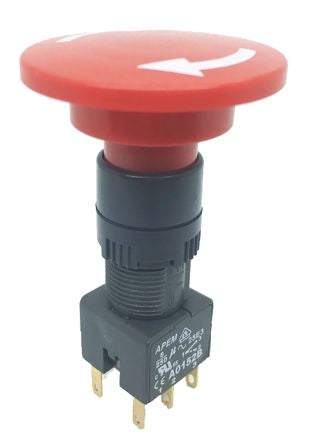

Double Pole Double Throw (DPDT) Latching Push Button Switch, IP65, 16mm, Panel Mount, 12 V dc, 250 V ac [A01MXBSP3+A0152B]; 137-0024
by APEM
0₫
Mã kho: 1370024
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Operation | Latching |
| Mounting Type | Panel Mount |
| Illuminated | No |
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Panel Cut Out Size | 16 (Dia.)mm |
| Panel Cut Out Diameter | 16mm |
| IP Rating | IP65 |
| Actuator Colour | Red |
| Voltage Rating | 12 V dc, 250 V ac |
| Contact Current Rating | 0.25 |
| Actuator Shape | Round |
| Terminal Type | Quick Connect, Solder |
| Contact DC Voltage Rating | 12V |
| Contact AC Voltage Rating | 250V |
| Actuator Type | Mushroom Button |
| Case Colour | Black |
