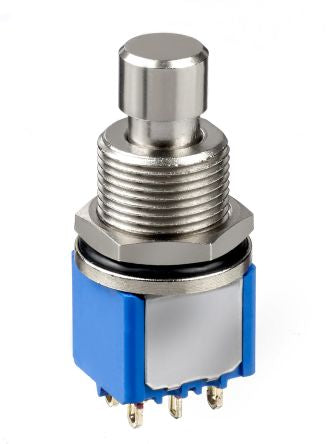

2-pole on-off switch Latching Push Button Switch, Through Hole, 30V dc [8646AB6X923+U3631]; 174-8998
by APEM
0₫
Mã kho: 1748998
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Switch Operation | Latching |
Mounting Type | Through Hole |
Illuminated | No |
Contact Configuration | Double Pole Double Throw (DPDT) |
Panel Cut Out Size | 6.5 (Dia.)mm |
Panel Cut Out Diameter | 6.5mm |
Actuator Colour | Black |
Voltage Rating | 30V dc |
Contact Current Rating | 4 A @ 30 V dc |
Actuator Shape | Round |
Terminal Type | Solder Lug |
Actuator Type | Plunger |
Contact DC Voltage Rating | 30V |
