![APEM 7646AD+U1202+U732 6925413](http://nguyenxuong.com/cdn/shop/products/R6925419-01_387x413.jpg?v=1594063750)

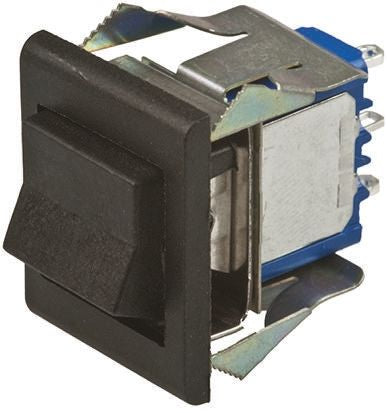

APEM Double Pole Double Throw (DPDT), Latching Rocker Switch Panel Mount [7646AD+U1202+U732]; 692-5413
by APEM
0₫
Mã kho: 6925413
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Double Pole Double Throw (DPDT) |
Switch Operation | On-On |
Panel Cut Out Width | 15mm |
Panel Cut Out Height | 12.5mm |
Contact Current Rating | 4 A @ 30 V dc |
Illuminated | No |
Actuator Colour | Black |
Mounting Type | Panel Mount |
Terminal Type | Solder |
Actuator Shape | Rectangular |
Panel Cut Out Size | 12.5 x 15mm |
Contact Resistance | 10mΩ |
Minimum Operating Temperature | -40°C |
DC Voltage Rating | 30V |
Contact Material | Gold Plated Silver |
AC Voltage Rating | 125 V, 250 V |
Case Material | Diallyl Phthalate |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85°C |
Mechanical Life | 100000Operations |
