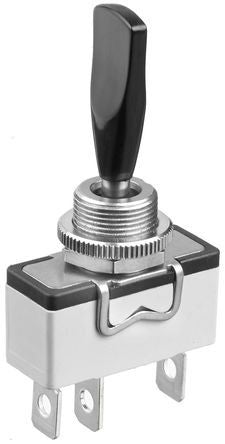

APEM Single Pole Double Throw (SPDT) Toggle Switch, (On)-Off-(On), Panel Mount [637H/2+U282]; 910-8106
by APEM
0₫
Mã kho: 9108106
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | (On)-Off-(On) |
| Contact Current Rating | 0.416666666666667 |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 12.2mm |
| Actuator Length | 17.5mm |
| Actuator Material | Nickel Plated Brass |
| Voltage Rating | 400V ac |
| Contact Resistance | 10mΩ |
| Panel Cut Out Size | 12.2 (Dia.)mm |
| Minimum Operating Temperature | -20°C |
| Contact Material | Nickel Alloy, Silver |
| Operating Temperature Range | -20 +55°C |
| Maximum Operating Temperature | +55°C |
| Standards Met | CSA, NF-VDE, UL, UL Recognized |
| Mechanical Life | 10000 (Electrical)Cycles |
