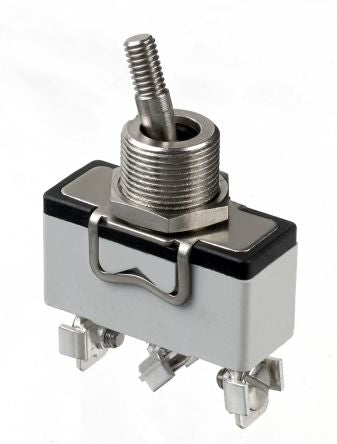

APEM Single Pole Double Throw (SPDT) Toggle Switch, Momentary, Panel Mount [635H/X2330]; 136-6445
by APEM
0₫
Mã kho: 1366445
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | (On)-On |
| Contact Current Rating | 10 (CSA) A, 10 (NF-VDE) A, 10 (UL) A |
| Mounting Type | Panel Mount |
| Terminal Type | Screw |
| Illuminated | No |
| Panel Cut Out Diameter | 12.2 (Dia.)mm |
| Actuator Length | 17.5mm |
| Actuator Material | Brass |
| Voltage Rating | 400V ac |
| Contact Resistance | 10mΩ |
| Maximum Operating Temperature | +55°C |
| Panel Cut Out Size | 12.2 (Dia.)mm |
| Contact Material | Silver Nickel Alloy |
| Operating Temperature Range | -20 +55°C |
| Standards Met | CSA, NF-VDE (EN 61058-1), UL |
| Minimum Operating Temperature | -20°C |
