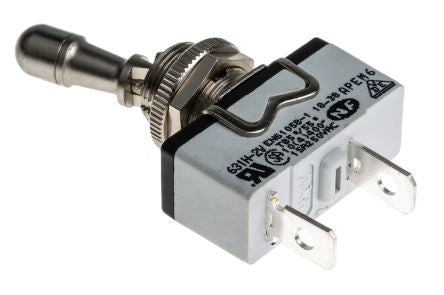

APEM Single Pole Single Throw (SPST) Toggle Switch, Latching, Panel Mount [631H/2-2V]; 306-4861
by APEM
0₫
Mã kho: 3064861
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | Latching |
| Contact Current Rating | 10 A @ 24 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Tab |
| Actuator Length | 19.4mm |
| Actuator Material | Nickel Plated Brass |
| Contact Resistance | 10mΩ |
| Contact Material | Silver Nickel Alloy |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +55°C |
| Operating Temperature Range | -20 +55°C |
