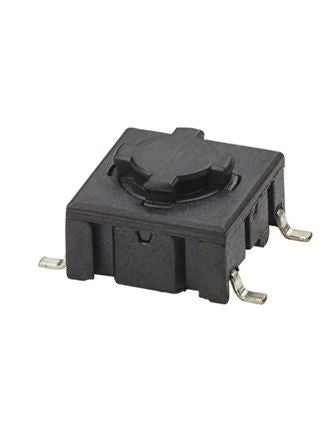

APEM Single Pole Single Throw (SPST), Momentary Rocker Switch Surface Mount [5ESH935+10A16LMH13613609+10AW]; 174-9025
by APEM
0₫
Mã kho: 1749025
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | Momentary |
| Contact Current Rating | 50 mA @ 24 V dc |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Surface Mount |
| IP Rating | IP67 |
| Terminal Type | Solder |
| Actuator Shape | Round |
| Case Material | PPS |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver |
| Operating Temperature Range | -40 → +160°C |
| Maximum Operating Temperature | +160°C |
| Contact Resistance | 30mΩ |
| DC Voltage Rating | 24V |
