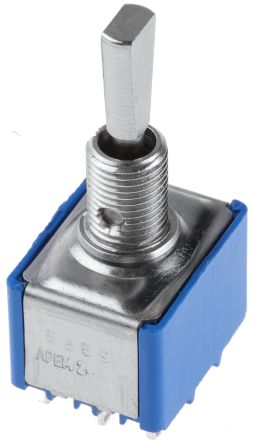

APEM 3-pole on-off switch Toggle Switch, On-Off-On, Panel Mount [5659A9]; 103-5552
by APEM
0₫
Mã kho: 1035552
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | 3-pole on-off switch |
| Switch Operation | On-Off-On |
| Contact Current Rating | 4 A @ 30 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Actuator Length | 11.4mm |
| Actuator Material | Brass |
| Contact Resistance | 10mΩ |
| Operating Temperature Range | -40 +85°C |
| Mechanical Life | 100000Operations |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver |
| Minimum Operating Temperature | -40°C |
