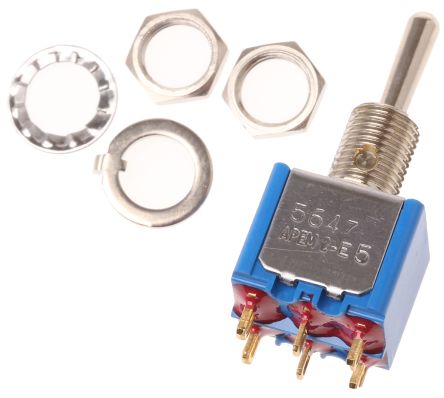

APEM Double Pole Single Throw (DPST) Toggle Switch, (On)-Off-(On), Panel Mount [5647CDB]; 692-5194
by APEM
0₫
Mã kho: 6925194
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Single Throw (DPST) |
| Switch Operation | (On)-Off-(On) |
| Contact Current Rating | 400 mA @ 20 V |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Actuator Material | Brass |
| Contact Resistance | 10mΩ |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 100000Operations |
| Contact Material | Gold Plated Brass |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
