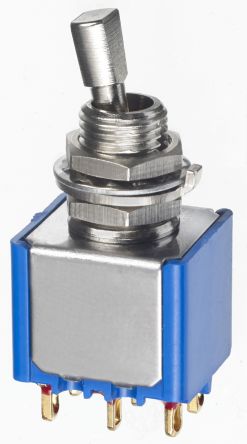

APEM Double Pole Double Throw (DPDT) Toggle Switch, Latching, Panel Mount [5646CDB12]; 123-2407
by APEM
0₫
Mã kho: 1232407
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | Latching |
| Contact Current Rating | 10 mA |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 6.5mm |
| Actuator Length | 6.3mm |
| Actuator Material | Brass |
| Voltage Rating | 20V ac/dc |
| Contact Resistance | 10mΩ |
| Standards Met | CECC 96201-007, CSA, UL, UL Recognised, VDE |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Brass |
| Panel Cut Out Size | 6.5 (Dia.)mm |
| Operating Temperature Range | -40 +85°C |
