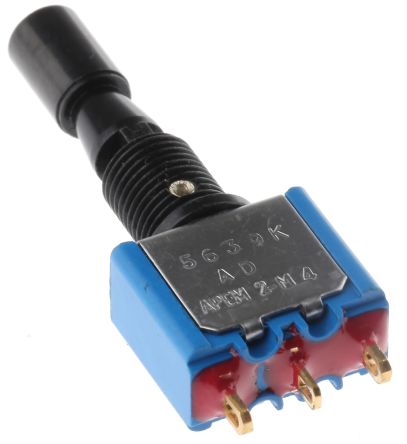

APEM Single Pole Double Throw (SPDT) Toggle Switch, Locking lever, On-Off-On, Panel Mount [5639ADBGK3V]; 692-5251
by APEM
0₫
Mã kho: 6925251
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | On-Off-On |
| Contact Current Rating | 4 A @ 30 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 6.5mm |
| Actuator Length | 15.1mm |
| Actuator Material | Nickel Plated Brass |
| Contact Resistance | 10mΩ |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -40 → +85°C |
| Panel Cut Out Size | 6.5mm |
| Minimum Operating Temperature | -40°C |
| Contact Material | Gold Plated Silver |
