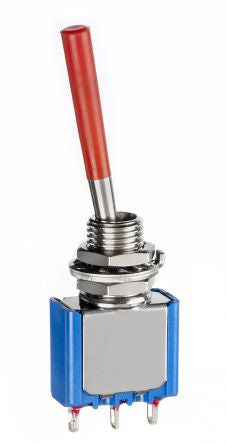

APEM Single Pole Double Throw (SPDT) Toggle Switch, Momentary-Off-Momentary, Panel Mount [5637AB-21+U646]; 165-1457
by APEM
0₫
Mã kho: 1651457
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | (On)-Off-(On) |
| Contact Current Rating | 3 A @ 250 V ac, 4 A @ 30 V dc, 6 A @ 125 V ac |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Illuminated | No |
| Panel Cut Out Diameter | 6.5mm |
| Actuator Length | 23.1mm |
| Actuator Material | Chrome Plated Brass |
| Voltage Rating | 30 V dc, 125 V ac, 250 V ac |
| Contact Resistance | 10mΩ |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver |
| Minimum Operating Temperature | -40°C |
| Panel Cut Out Size | 6.5 Dia.mm |
| Operating Temperature Range | -40 +85°C |
| Standards Met | CECC 96201-007, CSA, CULus Recognised, UL Listed, VDE |
