![APEM 55639AVDE 2369165](http://nguyenxuong.com/cdn/shop/products/F2369165-01_444x322.jpg?v=1594455314)

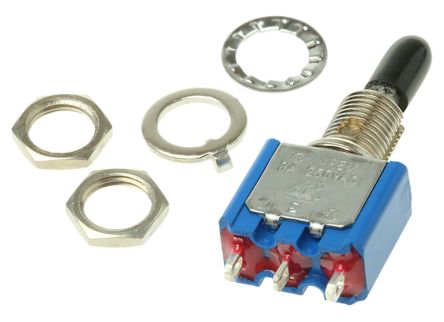

APEM Single Pole Double Throw (SPDT) Toggle Switch, On-Off-On, Panel Mount [55639AVDE]; 236-9165
by APEM
0₫
Mã kho: 2369165
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Double Throw (SPDT) |
Switch Operation | On-Off-On |
Contact Current Rating | 4 A @ 30 V dc |
Mounting Type | Panel Mount |
Terminal Type | Solder |
Panel Cut Out Diameter | 6.35mm |
Actuator Length | 11.5mm |
Actuator Material | Chromium Plated Brass |
Contact Resistance | 100mΩ |
Operating Temperature Range | -40 +85°C |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
Panel Cut Out Size | 6.35mm |
Contact Material | Silver |
