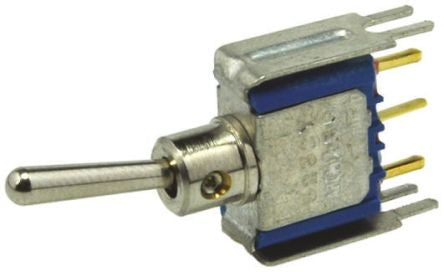

APEM Single Pole Single Throw (SPST) Toggle Switch, Latching, PCB [5236YCDB]; 692-5337
by APEM
0₫
Mã kho: 6925337
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | Latching |
| Contact Current Rating | 400 mA @ 20 V |
| Mounting Type | PCB |
| Terminal Type | Through Hole |
| Actuator Material | Brass |
| Contact Resistance | 10mΩ |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -40 +85°C |
| Contact Material | Gold Plated Brass |
| Minimum Operating Temperature | -40°C |
