![Apem 3D1-ZBH-08-520 7897340](http://nguyenxuong.com/cdn/shop/products/R7897340-01_193x423.jpg?v=1594363841)

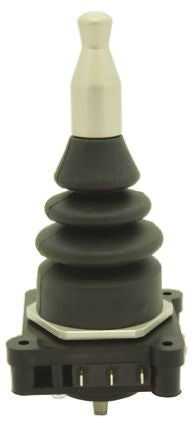

IP67 Joystick, 1 axes, 10 A @ 250 V ac Solder 250V, -20 +50°C [3D1-ZBH-08-520]; 789-7340
by Apem
0₫
Mã kho: 7897340
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Axes | 1 |
IP Rating | IP67 |
Handle Type | Toggle |
Contact Voltage Rating | 250V |
Contact Current Rating | 10 A @ 250 V ac |
Contact Material | Silver |
Joystick Travel | ±12 ° |
Terminal Type | Solder |
Mechanical Life | 1000000Operations |
Depth Behind Panel | 23mm |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +50°C |
Operating Temperature Range | -20 → +50°C |
