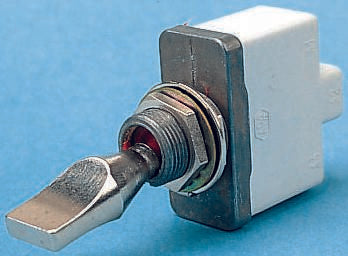

APEM Double Pole Single Throw (DPST) Toggle Switch, Latching, Panel Mount [3546-001N000]; 693-1424
by APEM
0₫
Mã kho: 6931424
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Double Pole Single Throw (DPST) |
Switch Operation | Latching |
Contact Current Rating | 15 A @ 125 V ac |
Mounting Type | Panel Mount |
Terminal Type | Screw |
Actuator Length | 17.5mm |
Actuator Material | Anodised Aluminium; Brass |
Contact Resistance | 10mΩ |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Mechanical Life | 40000Operations |
Operating Temperature Range | -40 → +85°C |
Contact Material | Silver Alloy |
