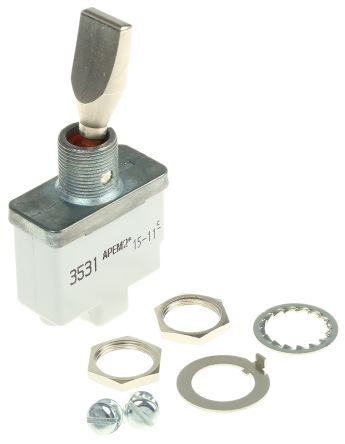

APEM Single Pole Single Throw (SPST) Toggle Switch, Latching, Panel Mount [3531-003N00]; 174-6410
by APEM
0₫
Mã kho: 1746410
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | Latching |
| Contact Current Rating | 15 A @ 125 V ac |
| Mounting Type | Panel Mount |
| Terminal Type | Screw |
| Actuator Length | 24mm |
| Actuator Material | Anodised Aluminium; Brass |
| Contact Resistance | 10mΩ |
| Operating Temperature Range | -40 +85°C |
| Mechanical Life | 40000Operations |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | +85°C |
