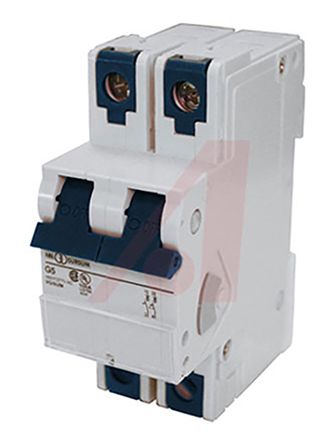

Altech 20A 2 Pole Thermal Magnetic Circuit Breaker V-EA [2D20UM]; 899-3455
by Altech
0₫
Mã kho: 8993455
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Current Rating | 20A |
Number of Poles | 2 |
Series | V-EA |
Breaking Capacity at Maximum Voltage Rating | 10 kA |
Tripping Characteristics | Type D |
Overall Length | 93.3mm |
Application | AC Discharge Lamps (Ballast), AC General Use, AC Incandescent Lamps (Tungsten), AC Motor Starting, AC Resistance, Across the Line, Heaters and Reactive Loads, High Inrush Motors, Power Supplies, Transformers, UL508 Application |
Mounting Style | DIN Rail Mount |
Break Time | Time Delay |
Terminal Contact Type | Box Clamp, Ring Tongue Terminal |
Special Features | IP20 Terminal Protection |
Rated AC Voltage | 480Y/277V |
Rated DC Voltage | 80V |
Circuit Breaker Type | MCCB |
Reset Actuator Type | Handle |
Overall Dimensions | 93.3 x 35 x 74.7mm |
Overall Depth | 74.7mm |
Tripping Mechanism | Thermal-Magnetic |
