![Altech 1Z3UM 8982045](http://nguyenxuong.com/cdn/shop/products/R8982045-01_296x445.jpg?v=1594121396)

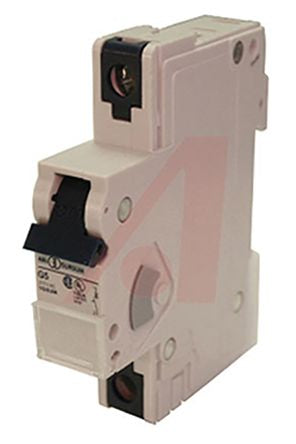

Altech 3A 1 Pole Thermal Magnetic Circuit Breaker, 42V dc V-EA [1Z3UM]; 898-2045
by Altech
0₫
Mã kho: 8982045
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Current Rating | 3A |
Number of Poles | 1 |
Voltage Rating | 42V dc |
Series | V-EA |
Special Features | IP20 Terminal Protection |
Break Time | Time Delay |
Terminal Contact Type | Box Clamp, Ring Tongue Terminal |
Overall Dimensions | 93.3 x 17.5 x 74.7mm |
Overall Depth | 74.7mm |
Mounting Style | DIN Rail Mount |
Overall Length | 93.3mm |
Breaking Capacity at Maximum Voltage Rating | 10 kA |
Rated DC Voltage | 42V |
Circuit Breaker Type | MCCB |
Tripping Mechanism | Thermal-Magnetic |
Reset Actuator Type | Toggle Switch |
Application | AC Discharge Lamps (Ballast), AC General Use, AC Incandescent Lamps (Tungsten), AC Motor Starting, AC Resistance, Across the Line, Components which Fail-Short, Components/Devices with Low Surge Current and Short Circuit Withstand Capabilities, Semiconductors, UL508 Application |
Tripping Characteristics | Type Z |
