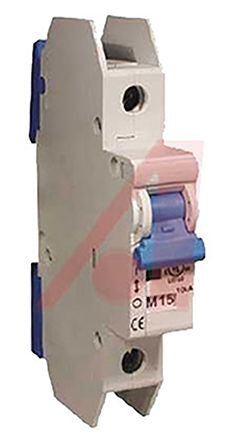

Altech 2A 1 Pole Thermal Magnetic Circuit Breaker, 240V ac L [1CU2L]; 898-4842
by Altech
0₫
Mã kho: 8984842
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 2A |
| Number of Poles | 1 |
| Voltage Rating | 240V ac |
| Series | L |
| Application | Control Circuit, Lighting, Low Inrush Motors, Receptacles, Resistive Loads, Wiring Protection |
| Mounting Style | DIN Rail Mount |
| Terminal Contact Type | Screw |
| Break Time | Time Delayed |
| Special Features | Medium Magnetic Trip Point, Relatively Short Thermal Trip Delay |
| Rated AC Voltage | 240V |
| Circuit Breaker Type | Miniature Molded Case |
| Reset Actuator Type | Toggle Switch |
| Overall Dimensions | 17.5 x 109 x 66.5mm |
| Overall Depth | 66.5mm |
| Tripping Mechanism | Thermal-Magnetic |
| Tripping Characteristics | Type C |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Overall Length | 17.5mm |
